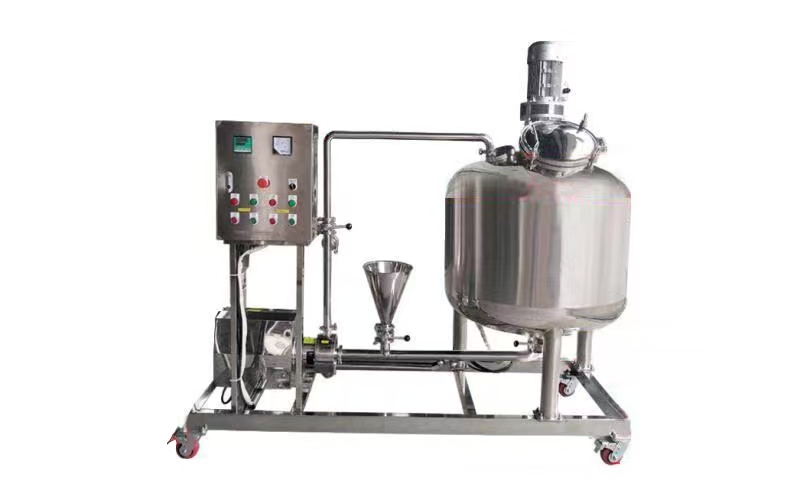

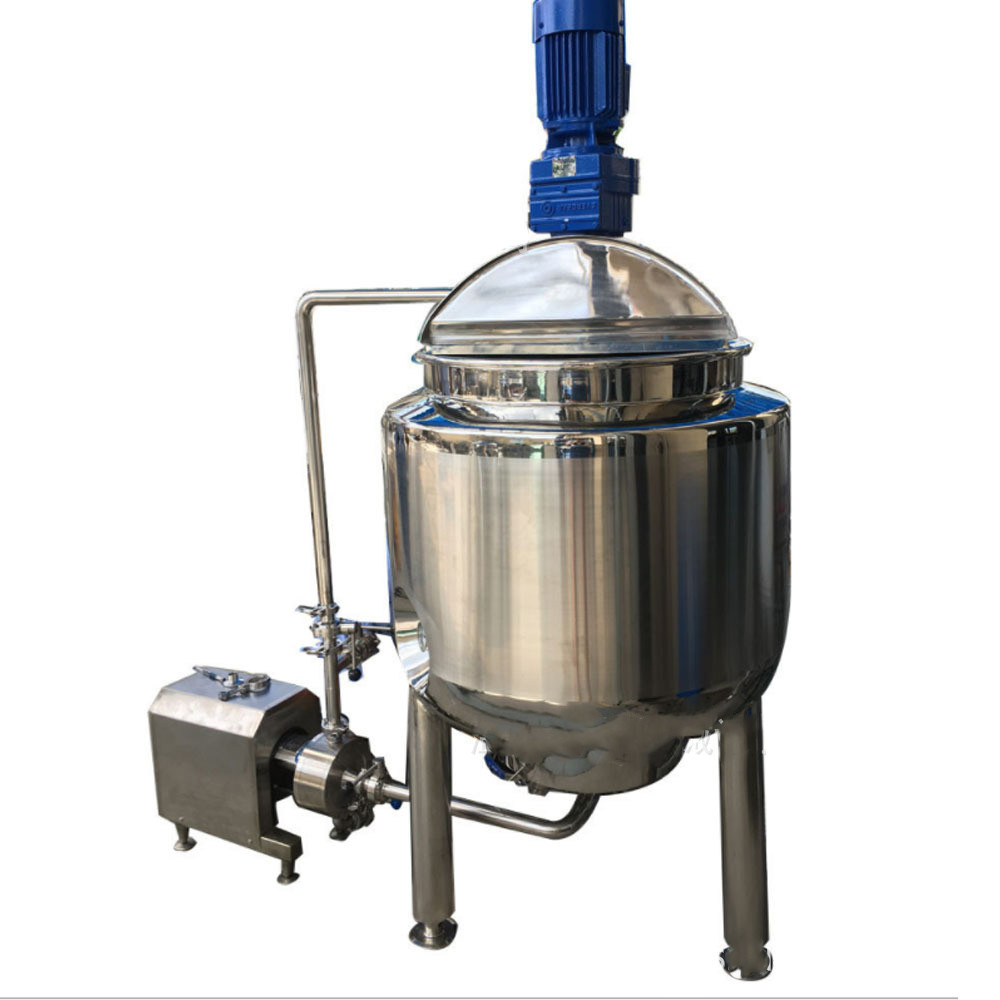

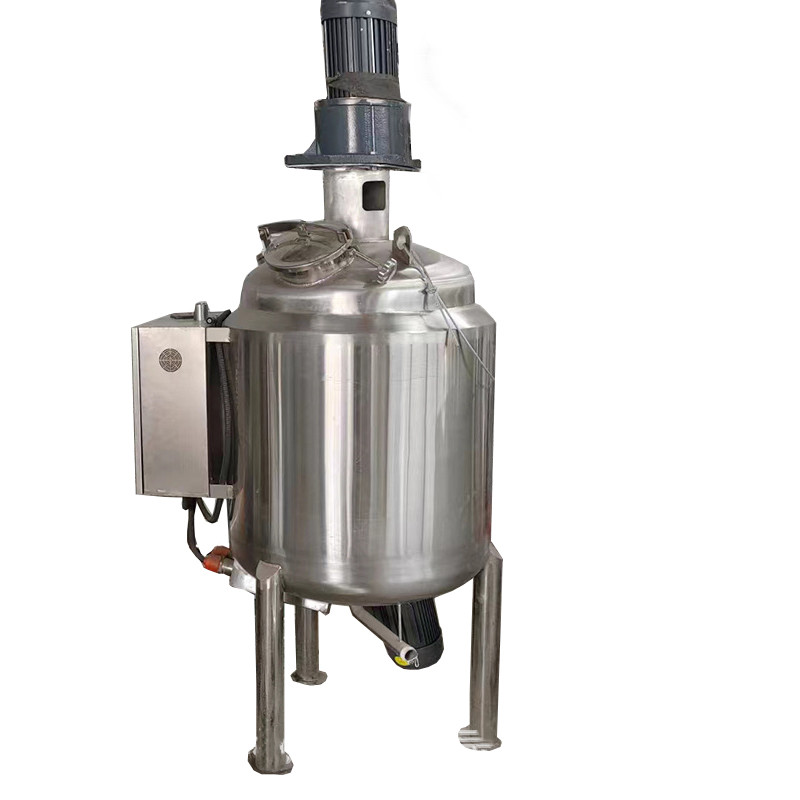

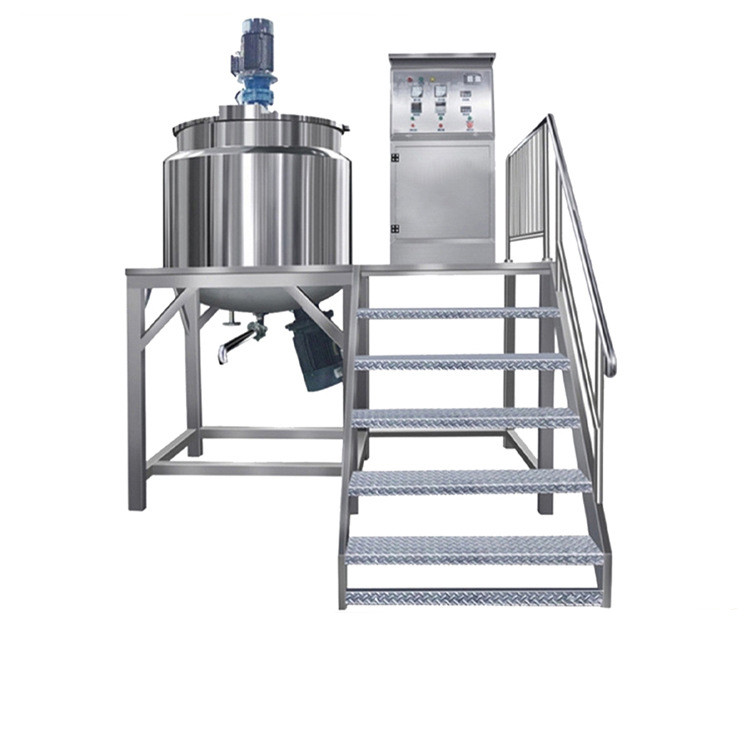

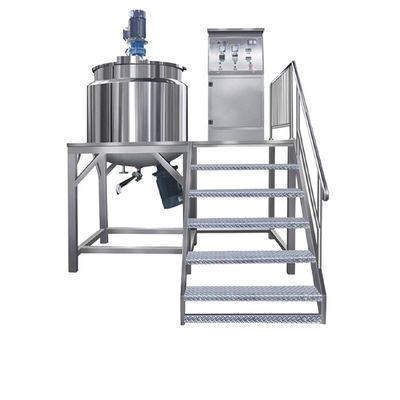

500 Liter SS304/SS316L Inline Homogenizer Mixer — Powder Liquid Continuous Mixing
| Place of Origin | Guangzhou, China |
|---|---|
| Brand Name | Vison Chemicals |
| Certification | CE, ISO 9001 |
| Model Number | VH-500PL-2 |
| Minimum Order Quantity | 1 Set (Sample Order Welcome) |
| Price | Custom Quote |
| Packaging Details | Export Plywood Case with Moisture Barrier |
| Delivery Time | 30-45 Days (Expedited Available) |
| Payment Terms | T/T 30% Advance, L/C at Sight |
| Supply Ability | 20+ Sets per Month |
Product Details
| Product Feature | Continuous Inline Powder-Liquid Homogenization | Material Option | SS304 / SS316L (Sanitary Grade) |
|---|---|---|---|
| Customization | Motor Power, Voltage, Seal Type, Surface Finish, Cooling Jacket | After-Sales Support | Online Guidance, Video Inspection, On-Site Commissioning |
| Material Certification | Traceable SS304/SS316L Mill Certificates | Surface Finish Grade | Mirror Polish Ra 0.4um (Sanitary & GMP-Ready) |
| Welding Standard | TIG Welded, Pickled & Passivated | CIP Compatible | Clean-In-Place Design For Fast Turnover |
| Corrosion Resistance | Superior Pitting & Crevice Resistance (SS316L) | Inspection Protocol | Three-Stage QC Before Shipment |
Product Description
500 Liter SS304/SS316L Inline Homogenizer Mixer — Powder Liquid Continuous Mixing
Built from certified SS304 or SS316L stainless steel. Every material-contact surface is traceable to mill certificates for food, and cosmetic industry compliance.
Material Selection
| Material | Best For | Key Advantage |
|---|---|---|
| SS304 | Chemicals, detergents, paint, adhesives | Cost-effective corrosion resistance |
| SS316L (Low Carbon) | cosmetics, food-grade | Superior pitting resistance; GMP mirror finish Ra 0.4um |
Certifications & Quality Standards
| Standard | Scope |
|---|---|
| ISO 9001:2015 | Quality management — design, production, after-sales |
| CE Marking | EU machinery safety & EMC compliance |
| EN 10204 3.1 | Material traceability for SS304/SS316L |
| Surface Finish Report | Documented Ra values for GMP-compliant surfaces |
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | VH-500PL |
| Material Contact | SS304 / SS316L (GMP-grade) |
| Surface Finish | Mirror polish Ra 0.4um / Pickling passivation |
| Capacity | 500 Liters |
| Motor Power | 7.5 / 11 / 15 kW |
| Speed | 0-3,000 RPM (VFD) |
| Seal | Double mechanical seal with cooling flush |
| Voltage | 220V / 380V / 440V, 50Hz / 60Hz |
| Warranty | 12 months |
Industries & Recommended Materials
| Industry | Typical Application | Recommended |
|---|---|---|
| Personal Care & Healthcare | API suspension, topical gel | SS316L |
| Cosmetics | Cream, lotion, emulsion | SS316L |
| Food & Beverage | Sauce, mayonnaise, dairy blend | SS316L |
| Chemicals | Surfactant blend, polymer dispersion | SS304 / SS316L |
| Paints & Coatings | Pigment dispersion, color paste | SS304 |
| Adhesives | Emulsion adhesive, sealant | SS304 |
