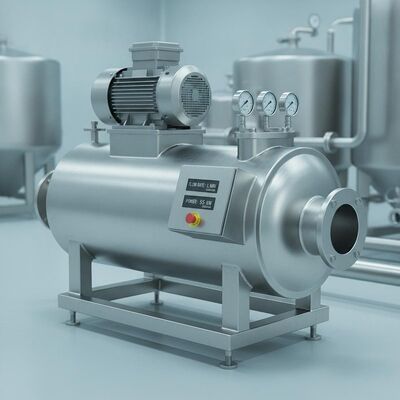

500L Stainless Steel Inline High Shear Mixer Homogenizer for Continuous Powder-Liquid Dispersion
| Place of Origin | Guangzhou, China |
|---|---|
| Brand Name | Vison Chemicals |
| Certification | CE, ISO 9001 |
| Model Number | VH-500IL |
| Minimum Order Quantity | 1 Set (Sample Order Welcome) |
| Price | Custom Quote |
| Packaging Details | Export Plywood Case with Moisture Barrier |
| Delivery Time | 30-45 Days (Expedited Available) |
| Payment Terms | T/T 30% Advance, L/C at Sight |
| Supply Ability | 20+ Sets per Month |
Product Details
| Tank Capacity | 500 Liters (50L-10,000L Available) | Rotor-Stator Stages | 3-Stage Multi-Gap (2-4 Configurable) |
|---|---|---|---|
| Motor Power | 7.5-15 KW, Frequency Inverter Controlled | Speed Range | 0-3000 RPM |
| Tank Material | SS304 Standard, SS316L Optional | Jacket Type | Dimple Jacket For Heating/Cooling (Steam/Electric/Water) |
| Max Viscosity | Up To 100,000 CP | Voltage | 220V/380V/440V, 50Hz/60Hz, 3-Phase |
| After-sales Service | Online Support, Video Technical Support, 48h Parts Dispatch | Warranty | 12 Months |
| Highlight | 500L stainless steel high shear mixer,inline powder-liquid dispersion homogenizer,continuous mixing tank with warranty |
||
Product Description
500L Stainless Steel Inline High Shear Mixer Homogenizer for Continuous Powder-Liquid Dispersion
Vison Chemicals VH-500IL Inline High Shear Mixer delivers continuous, high-throughput dispersion for powder-into-liquid mixing. Unlike batch tank mixers, the inline design processes material in a single pass through a rotor-stator workhead — reducing mixing time by up to 70% while achieving consistent, reproducible results. SS304/SS316L construction, CE & ISO 9001 certified.
Core Features & Benefits
| Feature | What It Does | Your Benefit |
|---|---|---|
| Multi-Stage Rotor-Stator | 3-stage shear generator with progressive gap reduction | Uniform dispersion in a single pass, no re-circulation needed |
| Continuous Inline Design | Material flows through workhead under pump pressure | 70% faster than batch mixing, scales to any production volume |
| 500L Stainless Steel Tank | SS304/SS316L jacketed vessel with CIP spray ball | Durable, sanitary, easy to clean between batches |
| Powder Induction Port | Vacuum-assisted powder feed directly into liquid stream | No dust, no floating powder, no fisheyes — clean operation |
| Frequency Inverter Speed Control | 0-3000 RPM variable speed with digital readout | Precise shear control for different formulations |
Technical Specifications
| Parameter | Specification |
|---|---|
| Tank Capacity | 500 Liters (50L-10,000L available) |
| Motor Power | 7.5-15 kW (scales with capacity) |
| Speed Range | 0-3000 RPM, frequency inverter controlled |
| Rotor-Stator Stages | 3 stages (2-4 stage configurable) |
| Tank Material | SS304 standard, SS316L optional |
| Jacket Type | Dimple jacket for heating/cooling (steam, electric, water) |
| Voltage | 220V/380V/440V, 50Hz/60Hz, 3-Phase |
| Max Viscosity | Up to 100,000 cP |
Industries & Applications
| Industry | Application |
|---|---|
| Detergents & Cleaning | Liquid soap, detergent, fabric softener mixing |
| Cosmetics | Shampoo, body wash, lotion base preparation |
| Food Processing | Sauce, dressing, syrup, thickener dispersion |
| Paints & Coatings | Pigment dispersion, additive blending |
| Adhesives | Polymer dissolution, thickener hydration |
Why Choose Vison Chemicals
Continuous inline mixing reduces batch time by up to 70% vs traditional tank mixers
CE & ISO 9001 certified manufacturing — consistent quality, batch after batch
OEM/ODM customization available — tank size, material, agitator configuration to your spec
Pre-shipment QC video inspection — verify your equipment before it leaves the factory
18-language technical support for global customers — no communication barriers
Spare parts shipped within 48 hours — keep your production running
Contact Vison Chemicals Today
Email: minvison@163.com | www.mixing-tanks.com
Tell us your capacity, material, and process — we will engineer the right solution.
Email: minvison@163.com | www.mixing-tanks.com
Tell us your capacity, material, and process — we will engineer the right solution.
