Home /Products/Mixer Tank/1000L SS304 Sanitary Juice Mixing Tank with Agitator for Fruit Juice and Beverage Blending

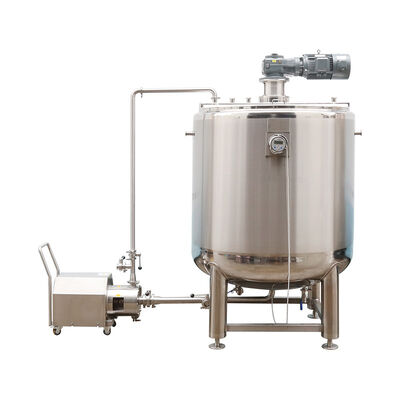

1000L SS304 Sanitary Juice Mixing Tank with Agitator for Fruit Juice and Beverage Blending

1 Set (Sample Order Welcome)
MOQ
Custom Quote
Price
1000L SS304 Sanitary Juice Mixing Tank with Agitator for Fruit Juice and Beverage Blending
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Fruit Juice Blending, Soft Drink Mixing, Beverage Production, Dairy Drink Preparation, Sugar Syrup Dissolving, Food Grade Liquid Mixing
Material: SS304 (Food Grade) / SS316L
After-sales Service: Online Support, Field Installation & Commissioning
Warranty: 1 Year
Heating Method: Electric / Steam Jacket Heating With PID Temperature Control
Agitator Type: Top Entry Propeller / Paddle Agitator With Variable Frequency Drive
Lid Configuration: Sanitary Hinged Manway With CIP Spray Ball And Sight Glass
Tank Volume: 500 - 10000 L Customizable
Insulation: Rock Wool Insulation With SS304 Cladding (Optional)
Discharge Type: Sanitary Tri-Clamp Bottom Ball Valve Discharge
Highlight:

juice mixing tank

,

fruit juice blending tank

,

beverage mixing tank

,

soft drink mixing tank
Basic Infomation
Place of Origin: Guangzhou, China
Brand Name: Vison Chemicals
Certification: CE, ISO9001
Model Number: VC-MT-J1000
Payment & Shipping Terms
Packaging Details: Export Plywood Case with Moisture Barrier
Delivery Time: 30-45 Days (Expedited)
Payment Terms: T/T 30% Advance + L/C at Sight
Supply Ability: 20+ Sets/Month
Product Description

SS304 Sanitary Juice Mixing Tank with Agitator for Fruit Juice and Soft Drink Blending

Vison Chemicals manufactures food-grade SS304 juice mixing tanks for fruit juice, soft drink and beverage blending. The sanitary mixing tank combines a top-entry agitator with an optional heating and cooling jacket to dissolve sugar syrup, hydrate stabilizers and blend fruit pulp into uniform juice and beverage formulations. Its fully welded SS304 interior, sloped sanitary bottom and CIP spray ball meet food-grade hygiene requirements for juice, beverage and dairy processing plants.

Key Features

  • Food-grade SS304 juice mixing tank with mirror-polished interior for hygienic fruit juice and beverage production
  • Top-entry propeller or paddle agitator with variable frequency drive for gentle pulp and syrup blending without damaging fruit solids
  • Optional heating and cooling jacket with PID control for sugar syrup dissolving and stabilizer hydration during beverage mixing
  • Fully welded sloped bottom and sanitary tri-clamp discharge for complete drainage and fast CIP cleaning between juice batches
  • Hinged sanitary manway with sight glass and CIP spray ball for easy inspection and hygienic juice mixing operations
  • Food-grade silicone seals and polished welds meet beverage processing hygiene requirements for juice and soft drink lines

Technical Specifications

ParameterSpecification
Tank Volume500 - 10000 L
Wetted MaterialSS304 (SS316L Optional)
Interior FinishMirror Polish Sanitary Finish
Agitator TypeTop Entry Propeller / Paddle
Agitator DriveVariable Frequency Drive, 0 - 140 rpm
Heating / CoolingElectric / Steam / Chilled Water Jacket
Working TemperatureUp to 120 C
Lid ConfigurationHinged Manway + CIP Spray Ball + Sight Glass
DischargeSanitary Tri-Clamp Ball Valve
Control SystemPLC Touch Screen with PID Control

Applications

IndustryWhat You Can MakeRecommended Config
Fruit JuiceOrange juice, apple juice, mango nectar, mixed fruit drinkTank + propeller agitator
Soft DrinkSoft drink syrup, iced tea, energy drink, flavored waterTank + jacket + CIP spray ball
Dairy BeverageYogurt drink, flavored milk, whey beverageTank + cooling jacket
Syrup PreparationSugar syrup, glucose syrup, fructose syrupTank + heating jacket
Functional BeverageJuice concentrate, vegetable juice, smoothie baseTank + high-shear option
Food Additive SolutionCitric acid solution, stabilizer slurryTank + paddle agitator

Why Choose Us

  • Vison Chemicals is a Guangzhou based manufacturer and factory of stainless steel food processing and beverage mixing equipment
  • OEM and ODM support with tank volume, agitator and jacket customization for juice and beverage production
  • CE and ISO9001 certified production with export experience in food and beverage plant projects worldwide
  • Field installation, operator training and after-sales support for juice mixing and beverage blending systems
For juice mixing tank pricing, specifications and catalog, contact Vison Chemicals.
Email: minvison@163.com | Web: www.mixing-tanks.com

#JuiceMixingTank #BeverageMixingTank #JuiceBlendingTank #FruitJuiceProcessing #SoftDrinkMixing #BeverageBlendingTank #DairyMixingTank #SyrupMixingTank #SanitaryMixingTank #FoodGradeMixingTank #SS304Tank #StainlessSteelMixingTank #BeverageProcessing #VisonChemicals
